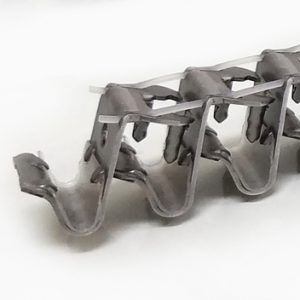

Ace-1 Sinuous Spring Anchor Clip

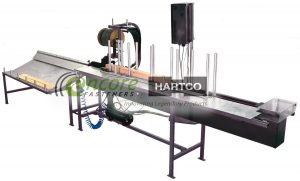

ACE Clipper 7000 Automatic Machine

Automatically feeds rails for precision placement of ACE spring anchor clips

APPLICATIONS: Upholstered furniture, such as chairs, sofas and loveseats
USE WITH FASTENERS: ACE-1 Clips
PRODUCT ID: EH-7000

Click here for video of ACE Clipper 7000 in use

Special Features

  • Minimal operator interaction required
  • Automated rail feed system
  • Super fast clipping speed exceeds 2 clips per second (7,200 applied per hour)
  • Programmable clip spacing, in inches or millimetres
  • Storage capacity for thousands of rail recipes
  • 10″ touch screen makes programming fast and intuitive
  • High capacity exit table keeps rails from falling on floor during large quantity runs
  • Infinitely adjustable head height option
  • Convenient 120VAC power requirement

Specifications

FASTENING FORMAT: Pneumatic Clipping Head

CLIP DELIVERY FORMAT: Elevated dispenser system

ROLL CAPACITY: 1,500 clips per roll

CLIP FEEDING METHOD: Single acting spring extended cylinder

PRIMARY POWER UNIT: Main Cylinder – Bore 3.06″ (78mm) spring return

AIR SUPPLY: 60-80 PSI (4.1-5.5 BAR)

DIMENSIONS (HxWxL): 6’ x 16’ x 6’ (1.8m x 4.9m x 1.8m)

WEIGHT: 650 lbs (295 kg), net weight

RELATED PRODUCT(S): ACE-1 Clips; ACE Clipper 6000 Semi-Automatic Machine
